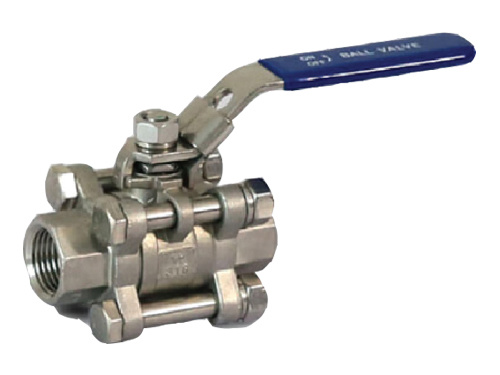

Screw Ball Valve

Our products encompass industrial valves and pipe fittings, fuel gas valves, precision machine fittings, compression fittings for drinking water pipelines, etc. (Our business scope includes industrial pipe networks, livelihood pipelines, ocean transportation, and precision machinery)

Key words:

Screw Ball Valve

Classification:

Description

- Commodity name: Screw Ball Valve
Application Scope

Piping systems that are susceptible to corrosion or require a high level of sanitation。For example:

Technical Parameters

Standards for Design: ASME B.16.34
Material: CF8M/316, CF8/304, carbon steel, forged steel
Specification: DN8-DN 100 (1/3” -4”)
Criteria for the experiment: API598, En12266
Nominal pressure: 1000PSI, 2000PSI
Thread standards: ASME B
1.20.1,BS21,DIN2999/259,IS0288-1,JIS B0203,ISO7-1
1.20.1, BS21, DIN2999/259, ISO288-1, JIS B0203, ISO7-1
Structural forms: integrated, two-piece, three-piece, tee connection, high platform, mini valve, check valve (1pc, 2pc, 3pc, Y-type, swing type, double-clip type), filter, water nozzle, etc.
Connection modes: threaded connection, socket welding, butt welding, clamp, compression connection, etc.
